Linear Rail OEM & ODM Custom Support

Home · Products

Linear Guide Rail

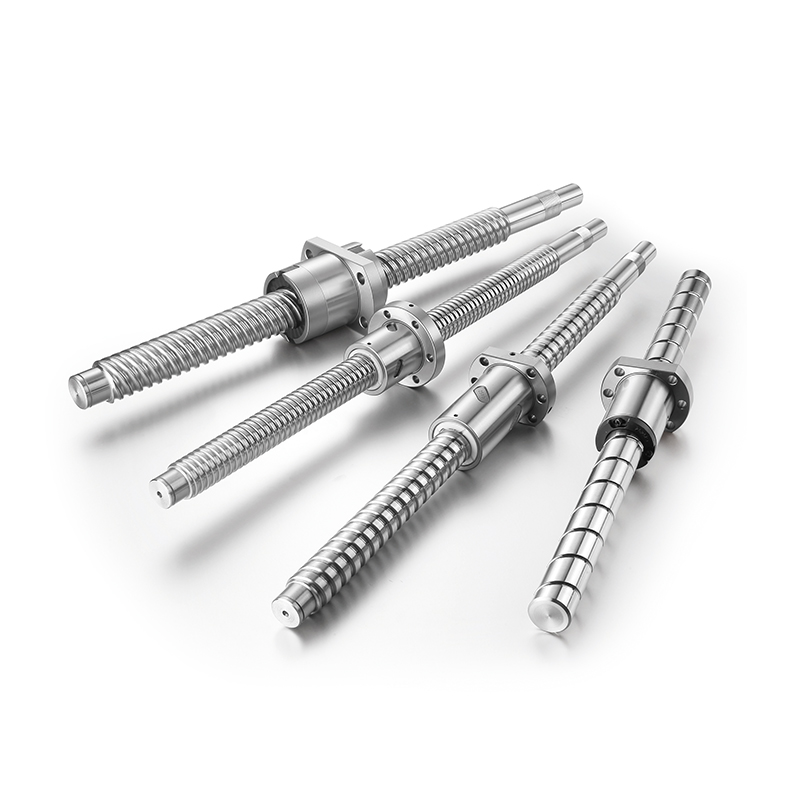

  • Range of ball screw assemblies supplied for OEM machinery, automation equipment, and linear motion systems requiring stable quality and bulk availability.
    Ball Screw
    Ball screws can be clearly categorized based on their core manufacturing processes and structural functional characteristics. The ...
    VIEW MORE

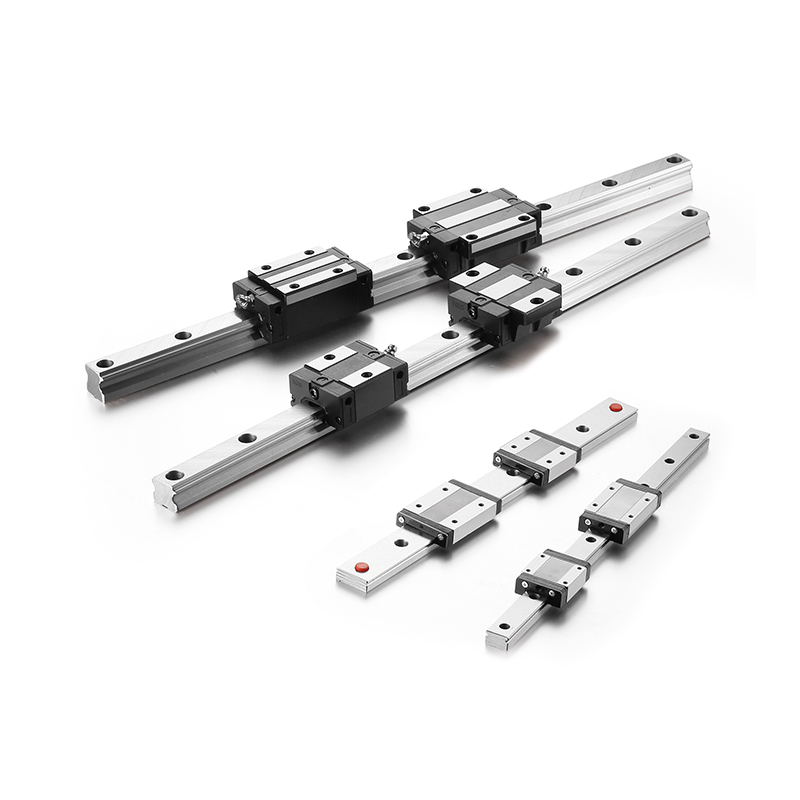

  • Assorted linear guideway rails and blocks in multiple sizes for automation systems, CNC equipment, and OEM machinery, suitable for bulk purchasing and industrial distributors.
    Linear Guideway
    Linear guideway (linear rails), as core components of precision linear motion, are primarily classified based on rolling element t...
    VIEW MORE

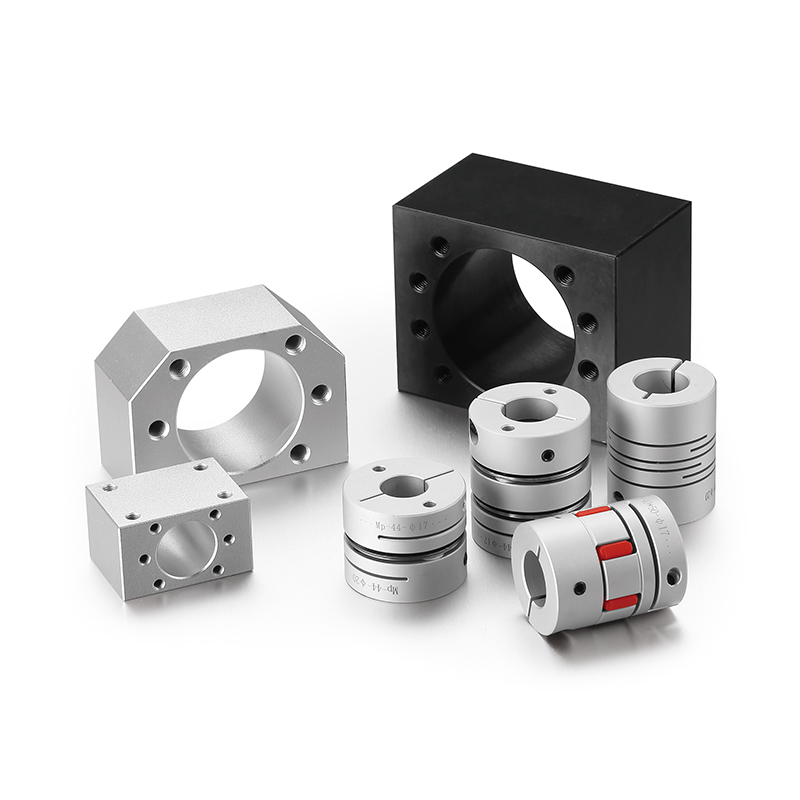

  • Range of coupling and nut housing components in multiple sizes for ball screw assemblies, CNC machines, and precision linear motion applications.
    Coupling / Nut Housing
    Couplings, as core mechanical components connecting two shafts and transmitting torque and motion, are primarily classified based ...
    VIEW MORE

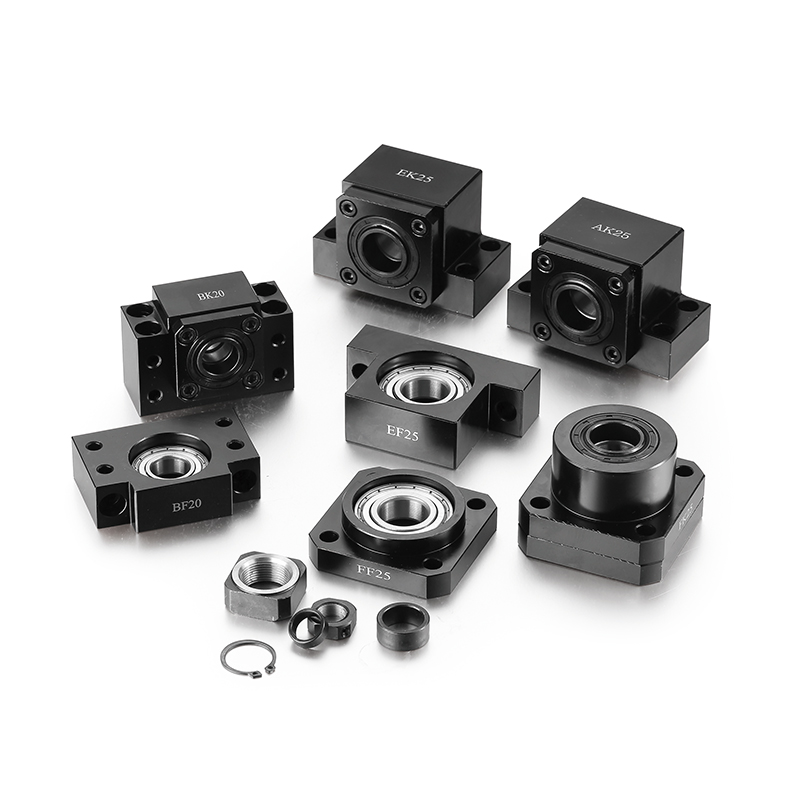

  • Assorted ball screw brackets and accessories with bearing blocks, lock nuts and retaining rings, suitable for linear motion systems, OEM machinery and bulk industrial supply.
    Ball Screw Brackets & Accessories
    Ball screw brackets and accessories are key components ensuring the high-precision, high-rigidity, and stable operation of ball sc...
    VIEW MORE

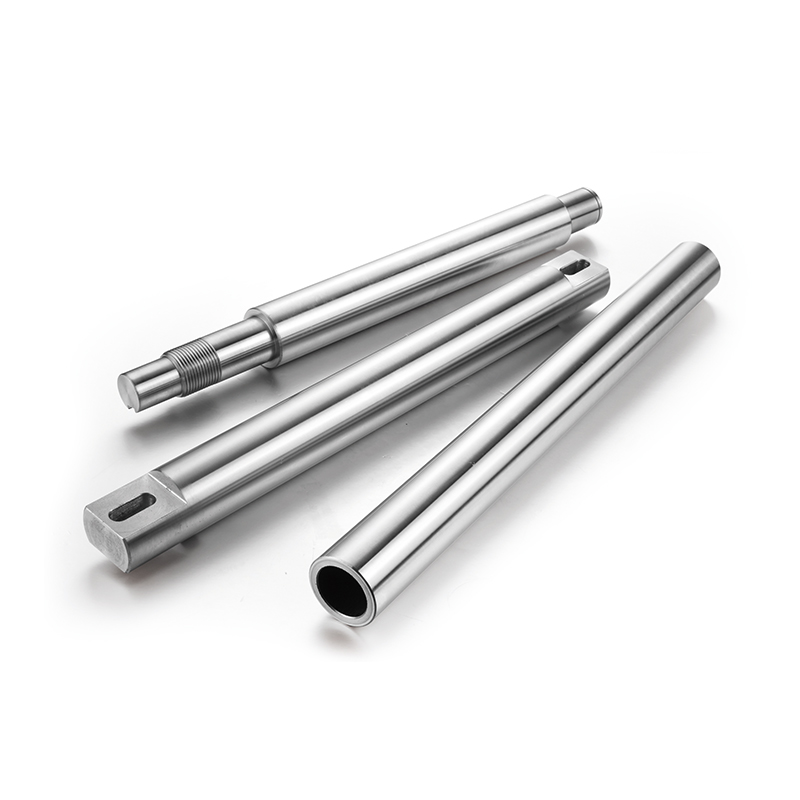

  • Custom machined shaft manufacturer offering threaded shafts, hollow shafts and slotted shaft components for OEM machinery and industrial motion applications.
    Linear Shaft
    Linear optical axes, as fundamental and crucial linear motion components, are primarily classified based on their core structural ...
    VIEW MORE

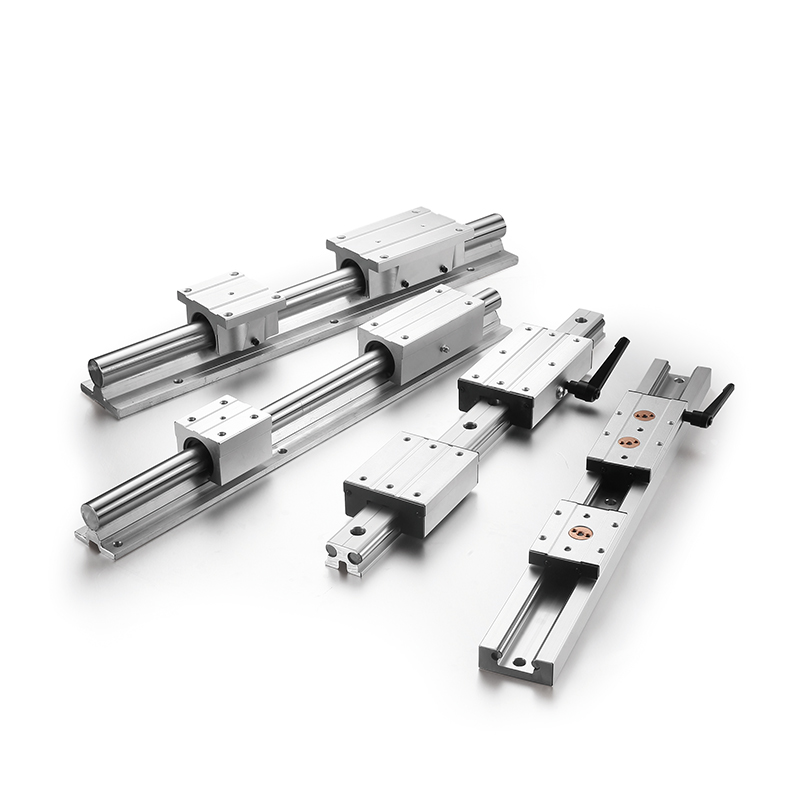

  • Different linear slide rail systems displayed with round shaft guides, carriage blocks and adjustable handles for flexible machine design.
    Roller / Cylindrical Linear Guide Set
    Roller and cylindrical linear guides offer an economical, efficient, robust, and durable linear motion solution. Their primary cla...
    VIEW MORE

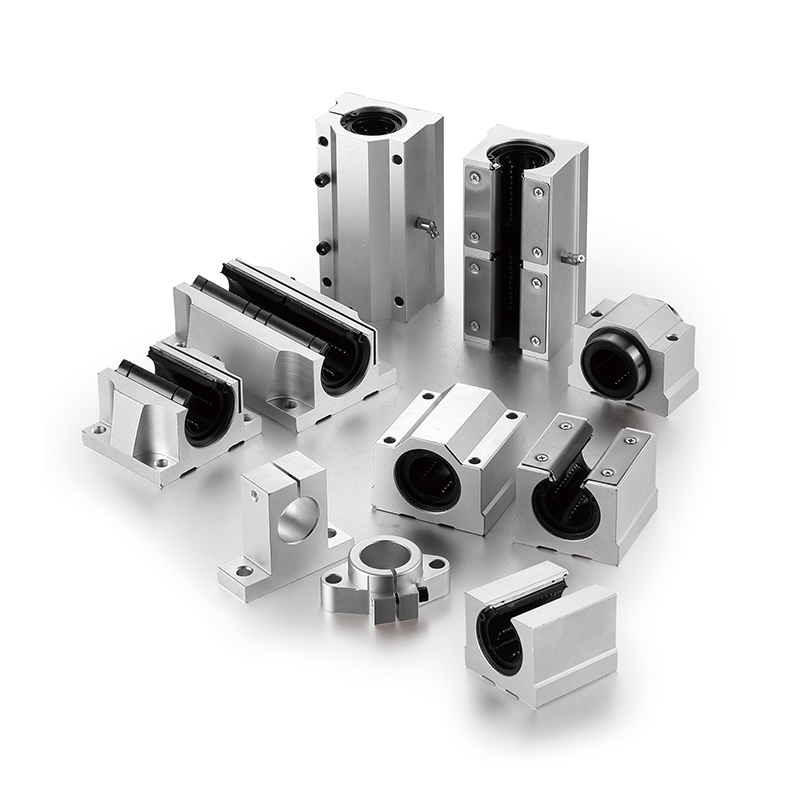

  • Range of linear bearing housings including open, closed, flanged and pillow block styles for shaft guide systems and precision motion applications.
    Linear Motion Slide Units
    Linear motion slide block units are highly integrated, ready-to-use linear motion modules. Their primary classification is based o...
    VIEW MORE

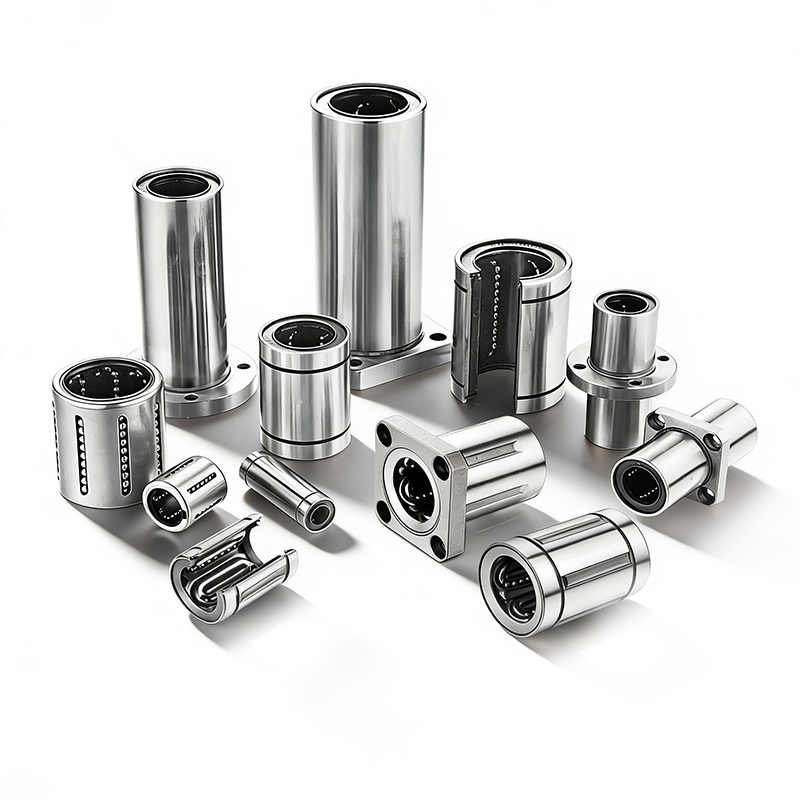

  • Linear Bearing
    Linear Bearing
    Linear bearings, as core components for achieving high-precision linear motion, are primarily classified based on their core struc...
    VIEW MORE

Precision Linear Guide Rails for Industrial Motion Systems

WanGong precision linear guide rails are engineered to provide accurate, stable, and low-friction linear motion for industrial machinery and automation systems. Designed for applications that require smooth movement, reliable load support, and repeatable positioning, our linear guide rail systems help improve machine stability, motion accuracy, and long-term operating performance.

As a precision transmission component manufacturer, Lishui Wangong Precision Machinery Co., Ltd. integrates R&D, production, sales, and technical service. We provide standard and customized linear guide rail solutions for global equipment manufacturers, automation companies, and industrial machinery applications.

Product Advantages

WanGong precision linear guide rails are designed for demanding motion applications where rigidity, accuracy, smooth operation, and service life are essential.

High Motion Accuracy

Precision-machined raceways and controlled assembly processes help ensure accurate linear movement and repeatable positioning performance. This makes WanGong linear guide rails suitable for automation systems, CNC equipment, measuring devices, and other precision machinery.

Strong Load Capacity and Rigidity

The optimized rail and slider structure supports stable load distribution in multiple directions. This helps maintain rigidity under dynamic movement, making the guide rail system suitable for equipment requiring stable support and controlled motion.

Smooth and Low-Friction Movement

The rolling element design reduces friction during operation, allowing smooth movement with lower driving force. This contributes to improved motion efficiency and reduced wear in continuous industrial operation.

Long-Term Reliability

High-quality materials, controlled heat treatment, precision grinding, and full-process inspection support durable performance and extended service life under demanding working conditions.

Easy System Integration

WanGong linear guide rails can be supplied with matched sliders, mounting accessories, and customized rail lengths to support efficient installation into different machine structures.

Manufacturing Capability

WanGong manages linear guide rail production through a systematic, traceable, and quality-controlled manufacturing process. From raw material inspection to precision machining and final testing, each stage is planned to ensure stable product performance.

Digital Planning and Material Control

Production begins with technical review, process planning, and raw material verification. Incoming materials are checked through certificate review, spectral analysis, hardness testing, and batch identification to ensure traceability throughout the entire production process.

Precision Machining and Heat Treatment

WanGong uses advanced machining centers, precision grinding equipment, and specialized processing systems to manufacture critical rail and slider components. Controlled heat treatment improves hardness stability, wear resistance, and internal stress balance.

Precision Grinding and Raceway Processing

The rail raceway is one of the most critical areas of a linear guide system. Through precision grinding and controlled surface finishing, WanGong helps ensure smooth rolling contact, stable movement, and reliable accuracy.

Slider Assembly and Adjustment

In a controlled assembly environment, experienced technicians complete slider assembly, ball circulation inspection, preload matching, and running smoothness verification. Each guide rail set is carefully checked to support consistent motion performance.

Full-Process Inspection

Inspection is embedded in every key manufacturing stage. From in-process dimensional measurement to final inspection, WanGong verifies rail accuracy, surface quality, hardness, preload, slider movement, and overall functional performance.

Materials and Specifications

WanGong provides standard and customized precision linear guide rails to meet different requirements for load capacity, motion accuracy, installation space, stroke length, and operating environment.

Specification Item Available Options Application Value
Product Type Precision linear guide rails For accurate and stable linear motion
Rail Type Standard rail, heavy-duty rail, miniature rail options Supports different machine structures
Slider Type Flange type, square type, long type, compact type Matches different installation requirements
Rail Length Standard or customized length Supports flexible machine design
Accuracy Grade Available according to project requirements Supports general to high-precision applications
Preload Level Light, medium, or customized preload Improves rigidity and motion stability
Material High-quality bearing steel / alloy steel options Supports wear resistance and long service life
Surface Treatment Available upon request Suitable for special operating environments
Accessories Sliders, end caps, seals, lubrication components Supports complete linear motion assembly

These options allow equipment manufacturers to select or customize a linear guide rail system based on load, speed, accuracy, installation space, stroke length, and environmental conditions.

OEM and Custom Linear Guide Rail Solutions

Standard linear guide rails may not meet every equipment design or installation requirement. WanGong provides customized linear guide rail solutions based on application needs, helping equipment manufacturers improve installation compatibility, motion stability, and overall system performance.

Customization Support

  • Rail length
  • Matched slider selection
  • Accuracy and preload requirements
  • Mounting and installation requirements
  • Surface protection requirements
  • Matched linear motion accessories
  • Product labeling and packaging requirements
  • Batch production according to confirmed specifications

Engineering Support for Custom Projects

Our technical team can review customer drawings, samples, or application requirements. For new projects, we can assist in evaluating key factors such as load direction, stroke length, motion speed, positioning accuracy, installation space, working environment, and maintenance requirements.

This helps ensure that the selected precision linear guide rails are compatible with the actual machine structure and expected operating performance.

Why Choose WanGong

WanGong is a reliable manufacturing partner for global companies seeking precision linear motion and transmission components from China. With integrated production, advanced equipment, strict process control, and responsive technical service, we support stable performance and long-term cooperation.

Strength Value for Your Project
18+ years of industry experience Proven manufacturing knowledge since 2008
52,000 m² production facility Strong capacity for stable supply and batch production
ISO9001-certified management Standardized quality and process control
Advanced manufacturing equipment Supports precision machining and consistent production
Full-process inspection Reduces quality risk before shipment
OEM customization Better fit for equipment design and application requirements
Global export experience Products supplied to 30+ countries and regions
24/7 response capability Faster communication for international cooperation

For procurement teams, engineers, and equipment manufacturers, these strengths support stable quality, predictable delivery, clear technical communication, and reliable project execution.
