Linear Motion Slide Units

Linear motion slide block units are highly integrated, ready-to-use linear motion modules. Their primary classification is based on the main structural material and core functional design to meet the comprehensive needs of different equipment in terms of rigidity, weight, precision, ease of installation, and cost.

The core classifications are as follows:

By Main Structure and Material

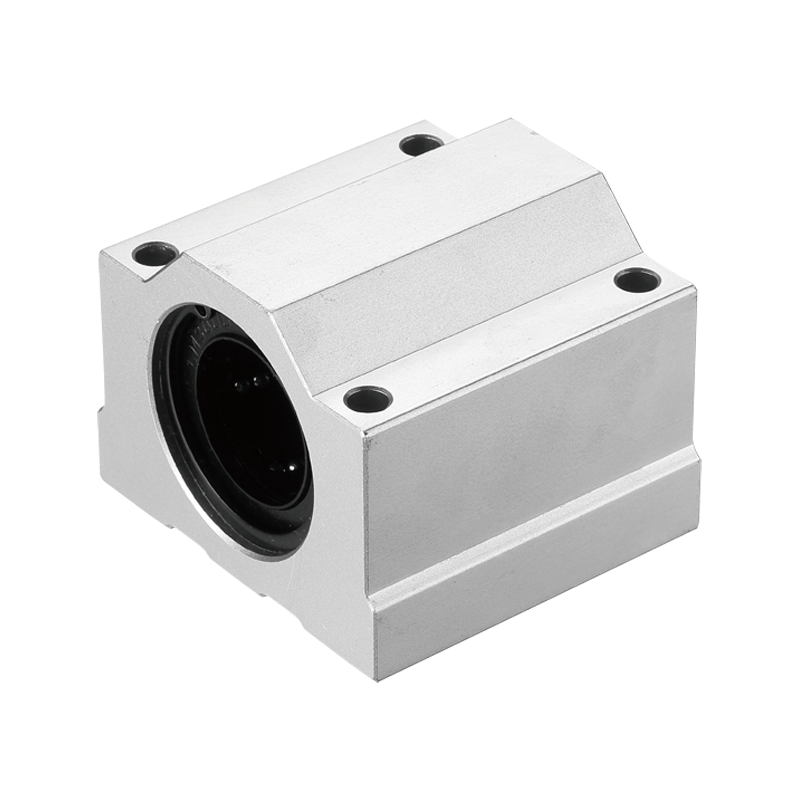

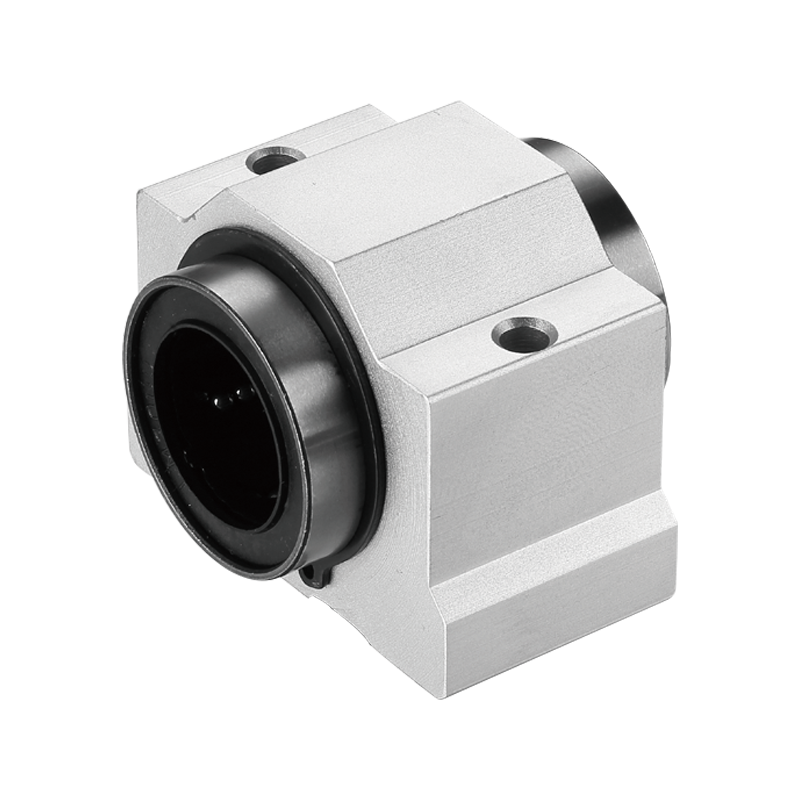

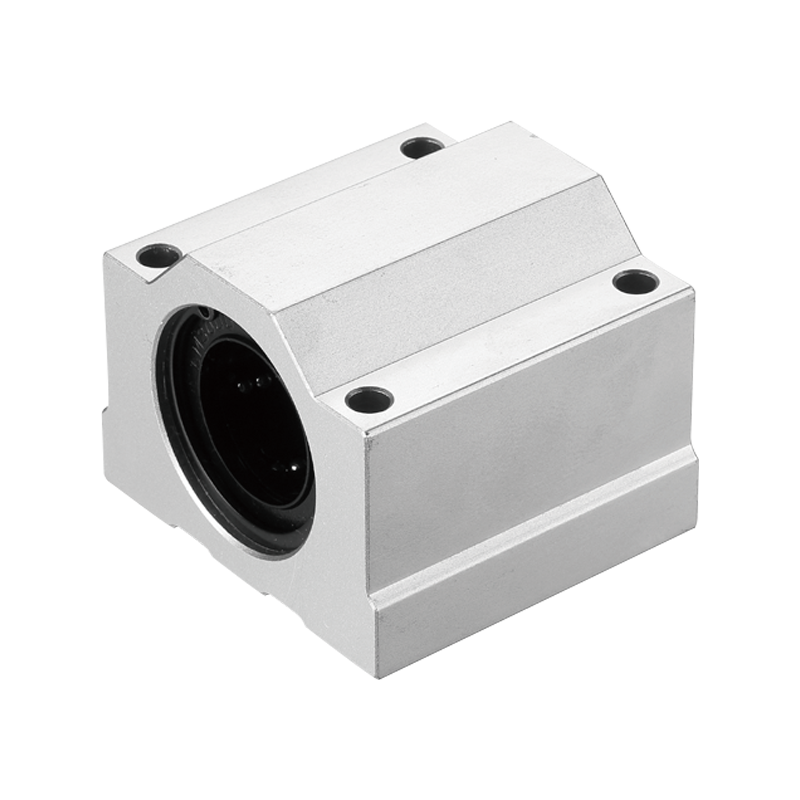

Standard Aluminum Main Units: Such as the SCS, SCV, SCE, and SCEV series.

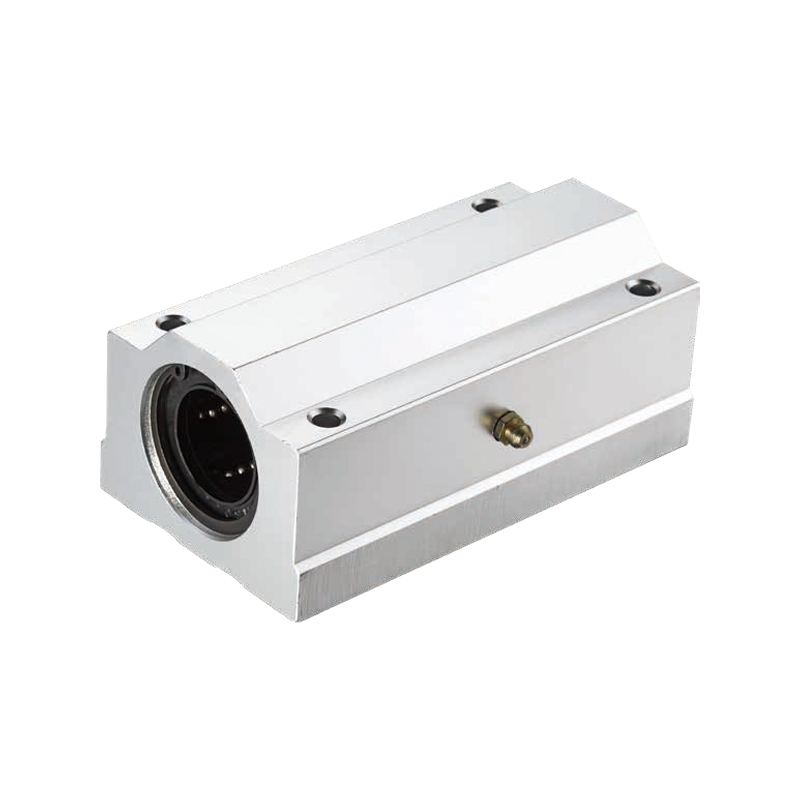

Extended Aluminum Main Units: Such as the SCL, SCEL, AJL, and EAJL series. The main body is made of aluminum alloy, with the core advantages of lightweight design and good corrosion resistance. This helps reduce the inertia of moving parts and is suitable for high-speed, weight-sensitive, or clean environment applications.

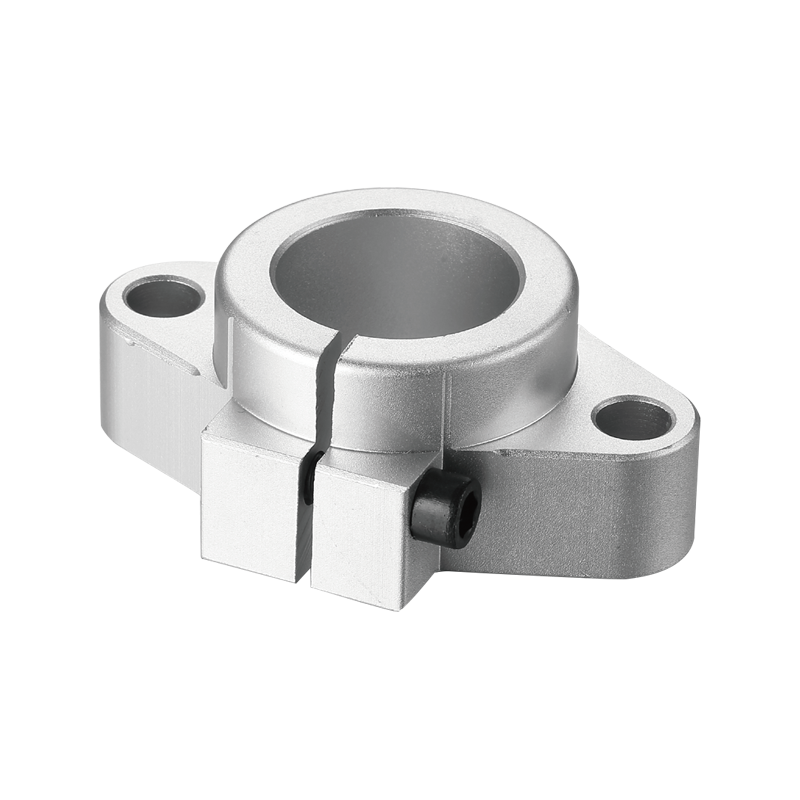

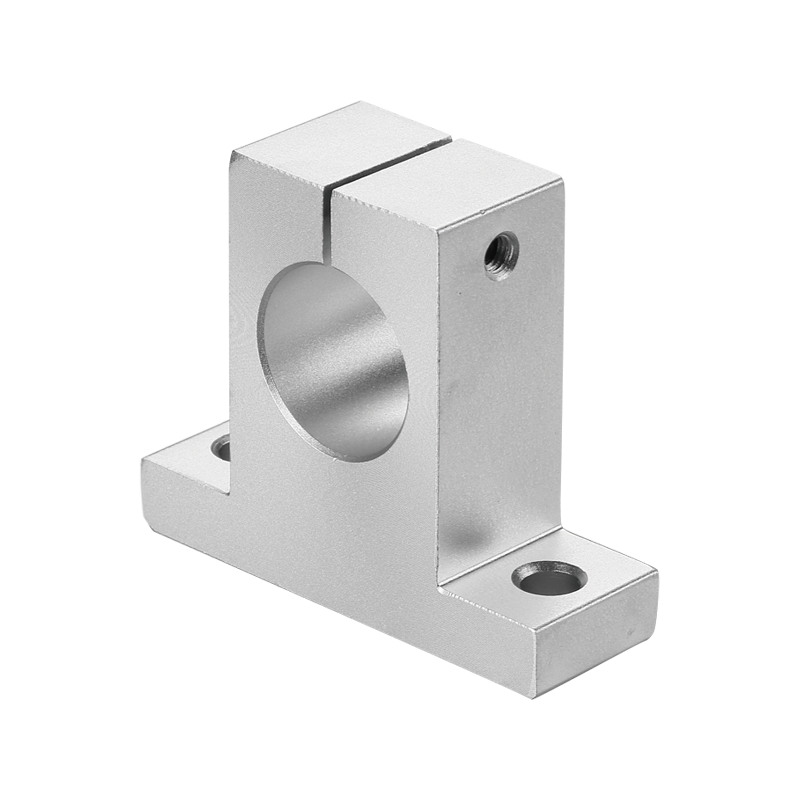

Dedicated Aluminum Supports: Such as the SK and SHF series. These are not complete units but independent support components designed for quick installation and alignment with standard axes or units, greatly simplifying structural design and assembly processes.

By Core Function and Design

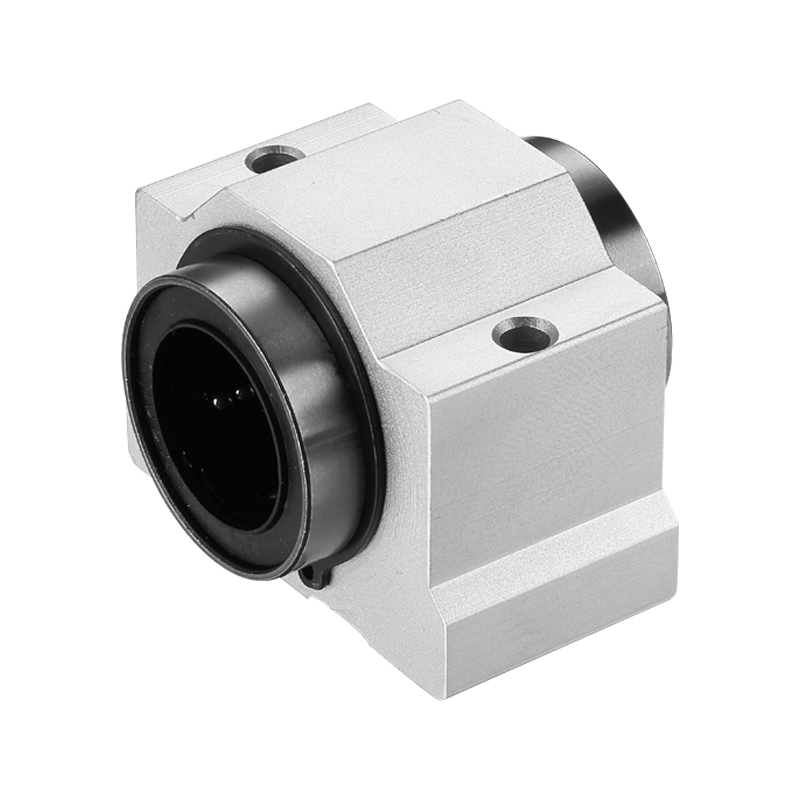

Standard/Ultra-Short Types: Such as the SCS-UU and SCV-UU series, offering balanced performance and wide applicability. Compact/Adjustable: Series such as AJ-UU and EAJ-UU optimize space and cost while maintaining core functionality.

Linear motion slide block units balance load and lightweight high speed through standard and extended options. Their modular design (standard, compact, adjustable) meets diverse space and performance requirements. Dedicated support bases enable rapid system setup, providing users with efficient options from core moving components to complete installation solutions.

About
Lishui Wangong Precision Machinery Co., Ltd.
Lishui Wangong Precision Machinery Co., Ltd. was founded in 2008 and is located in Lishui City, Zhejiang Province. We take pride in our state-of-the-art R&D and production facility, covering an impressive 52,000 square meters. Our expertise lies in manufacturing precision transmission components, such as ball screw assemblies, linear guides, roller guides, linear shafts, and linear slide unit solutions from china factory Wangong.

As a china linear motion slide unit manufacturer & supplier, we seamlessly integrate research and development, production, sales, and service. We have successfully incorporated advanced equipment and cutting-edge technologies from renowned countries like Germany, Japan, and Taiwan. Our commitment to innovation has led to the acquisition of multiple product design patents, and we proudly adhere to ISO9001 certification standards.
Certificate Of Honor
  • Certification
  • Certification
  • Certification
  • Certification
  • Certification
  • Certification
  • Certification
News
Message Feedback

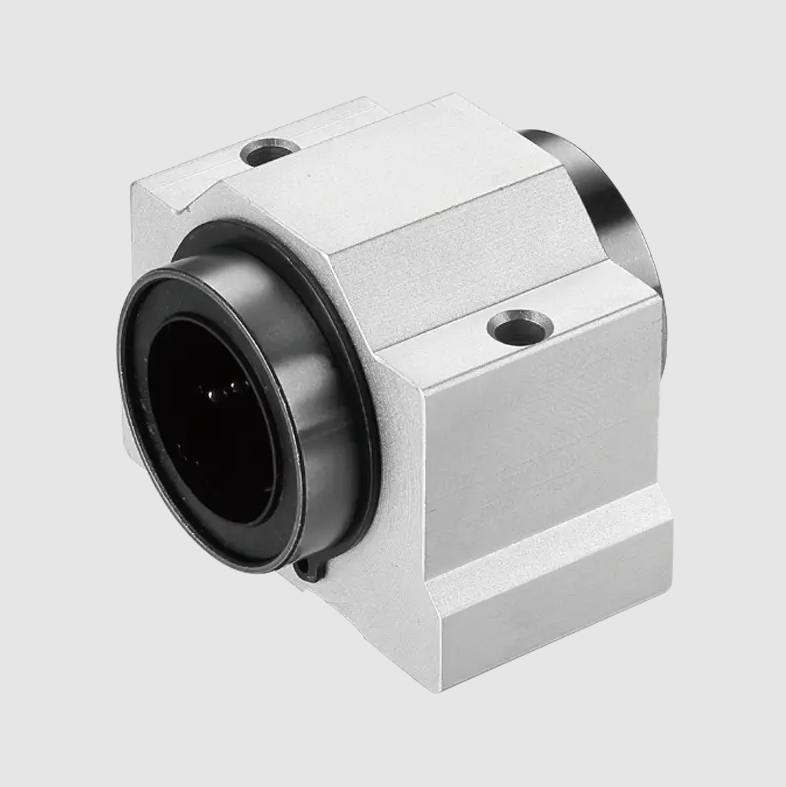

Wangong Linear Motion Slide Units for Automation and Machinery Applications

Linear Motion Slide Units are mechanical assemblies designed to provide controlled linear movement in industrial equipment. They are commonly used to guide, support, position, push, pull, or transfer parts along a straight path.

A typical linear motion slide unit may include linear guides, slide blocks, bearings, mounting bases, shafts, rails, drive components, support structures, screws, belts, or motor interfaces. Depending on the application, the unit can be manually adjusted or connected with a motor for automated motion control.

These units are widely used in machines where stable movement, compact structure, and repeatable positioning are important. From simple mechanical adjustment to automated production systems, linear motion slide units help machine designers build reliable motion structures with less complexity.

Common product types include linear slide units, linear guide slides, linear bearing slide units, precision linear slides, manual linear slides, motorized linear slide units, linear rail slide assemblies, ball screw linear slides, belt driven linear slides, and compact industrial slide modules.

Applications of Linear Motion Slide Units

Linear Motion Slide Units are suitable for many types of industrial equipment. Their main role is to provide guided linear travel while keeping the moving part stable and aligned.

They are often used in:

  • Automation production lines
  • Packaging machinery
  • Electronic assembly equipment
  • Semiconductor equipment
  • Medical testing devices
  • CNC machines
  • Robotic systems
  • Vision inspection equipment
  • Jigs and fixtures
  • Laboratory automation
  • 3D printers
  • Dispensing machines
  • Laser marking equipment
  • Printing machinery
  • Custom automation equipment
  • OEM machinery projects
  • Machine maintenance and upgrade work

In automated assembly systems, a linear slide unit can move a tooling head, sensor, clamp, or workpiece into position. In inspection equipment, it helps cameras, measuring probes, or test fixtures move smoothly and accurately.

In packaging machinery, it may be used for pushing, transferring, sealing, labeling, or positioning functions.

For compact machines, space-saving slide units are often preferred. For heavier structures, rigid guide rails, reinforced bases, and stronger load-bearing designs are more suitable.

Manual and Motorized Linear Motion Slide Units

Manual Linear Motion Slide Units

Manual slide units are adjusted by hand through knobs, handles, screws, or locking mechanisms. They are suitable for applications where movement is not frequent or where fine adjustment is required during machine setup.

Common Uses:

  • Fixture positioning
  • Machine adjustment
  • Inspection tools
  • Sensor position setting
  • Small mechanical platforms
  • Low-frequency positioning tasks

Manual units are simple in structure, easy to install, and convenient for maintenance.

Motorized Linear Motion Slide Units

Motorized slide units use stepper motors, servo motors, ball screws, lead screws, or belt drive systems to achieve controlled linear movement.

Common Uses:

  • Automated assembly
  • Repeated positioning
  • Material transfer
  • Robotic auxiliary axes
  • Inspection systems
  • Dispensing and laser equipment

These units are suitable for applications requiring stable speed control, accurate positioning, and automation system integration.

Advantages of Wangong Linear Motion Slide Units

Wangong focuses on practical linear motion solutions for industrial equipment. The manufacturing process is built around stable structure, accurate machining, smooth movement, and consistent delivery.

Each project usually starts with product design and parameter confirmation. Stroke length, load capacity, installation size, accuracy requirement, drive method, and working environment are reviewed before production.

Precision Machining

CNC machining, drilling, tapping, rail cutting, and surface treatment help ensure stable dimensional accuracy.

Smooth Movement Testing

Trial assembly and running tests are carried out before shipment to verify movement stability and positioning performance.

Quality Inspection

Inspection includes dimensional accuracy, mounting positions, load performance, vibration, noise, and lubrication condition.

Flexible Customization

Custom stroke length, rail structure, motor interface, mounting layout, and packaging solutions are available.

OEM Project Support

Wangong supports custom manufacturing based on drawings, equipment layouts, and motion parameters.

Export Packaging Protection

Protective packaging helps reduce scratches, deformation, rail damage, and accessory loss during transportation.

Key Points When Selecting Linear Motion Slide Units

Load Capacity

The unit should safely support the working load under the correct mounting condition.

Stroke Length

Travel distance should match the required movement range of the equipment.

Accuracy and Repeatability

Important for positioning, inspection, dispensing, measuring, and assembly applications.

Structural Rigidity

A rigid structure helps reduce vibration, deformation, and unstable movement.

Drive Method

Ball screw, lead screw, belt drive, stepper motor, or servo motor options should match the application.

Maintenance and Packaging

Proper lubrication, dust protection, and export packaging help improve service life and reduce downtime.

FAQ About Linear Motion Slide Units

What are Linear Motion Slide Units used for?

They are used to create stable straight-line movement in machinery and automation systems for positioning, guiding, transferring, and supporting moving parts.

How do I choose the right Linear Motion Slide Unit?

Selection depends on stroke length, load capacity, installation space, movement speed, accuracy requirement, and drive method.

What is the difference between ball screw and belt driven slides?

Ball screw slides provide higher positioning accuracy, while belt driven slides are better for long stroke and higher speed applications.

Can the stroke length be customized?

Yes. Wangong can customize stroke length, rail length, screw length, and travel distance according to equipment requirements.

Are motor mounting interfaces available?

Yes. Interfaces for stepper motors and servo motors can be customized according to installation requirements.

Can slide units be made according to drawings?

Yes. Wangong supports OEM and custom manufacturing based on drawings, samples, and equipment layouts.

Custom Linear Motion Slide Units for Industrial Equipment

Linear Motion Slide Units are widely used because they provide a practical and reliable method for straight-line movement in industrial machinery.

Whether the application requires manual adjustment, automated movement, compact installation, or precision positioning, the right slide unit can improve equipment stability and reduce assembly complexity.

Wangong provides standard and custom linear motion slide units for automation systems, machine frames, fixtures, inspection equipment, and OEM machinery projects.

With support for design confirmation, machining, assembly, movement testing, and protective export packaging, Wangong helps customers build stable and reliable motion systems for industrial applications.
