READ MORELinear optical axes, as fundamental and crucial linear motion components, are primarily classified based on their core structural features and dimensional standards to meet the diverse needs of different applications regarding rigidity, weight, cost, compatibility, and installation methods.
The core classifications are as follows:
By Core Structure

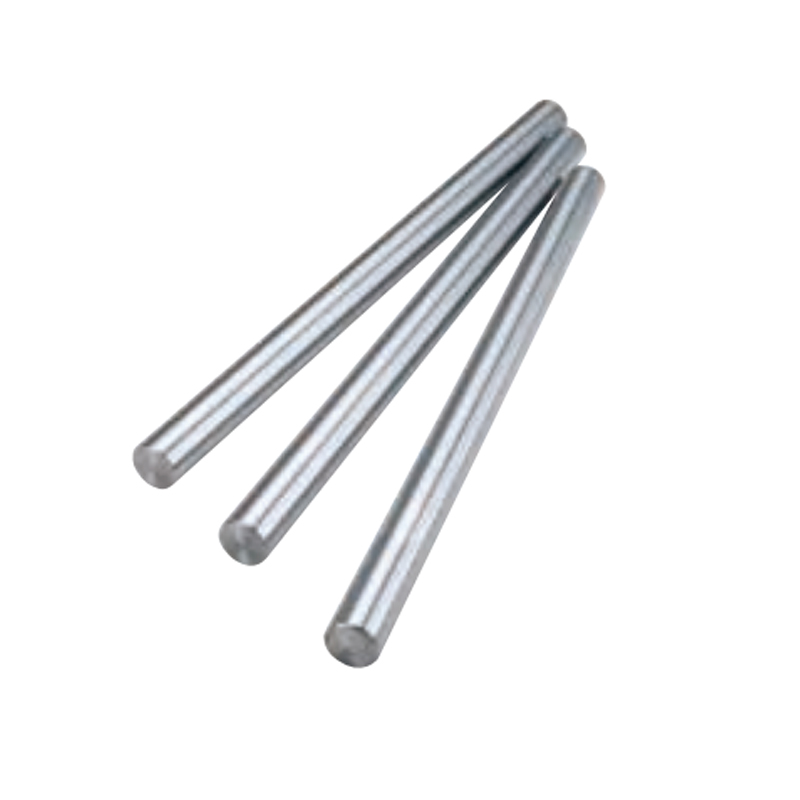

Solid Linear Optical Axles: Such as the HS/SF series (metric) and SI series (imperial). Made from solid round steel through precision machining and hardening, they possess excellent rigidity and load-bearing capacity, with a robust structure. They are the most widely used and versatile standard optical axes.

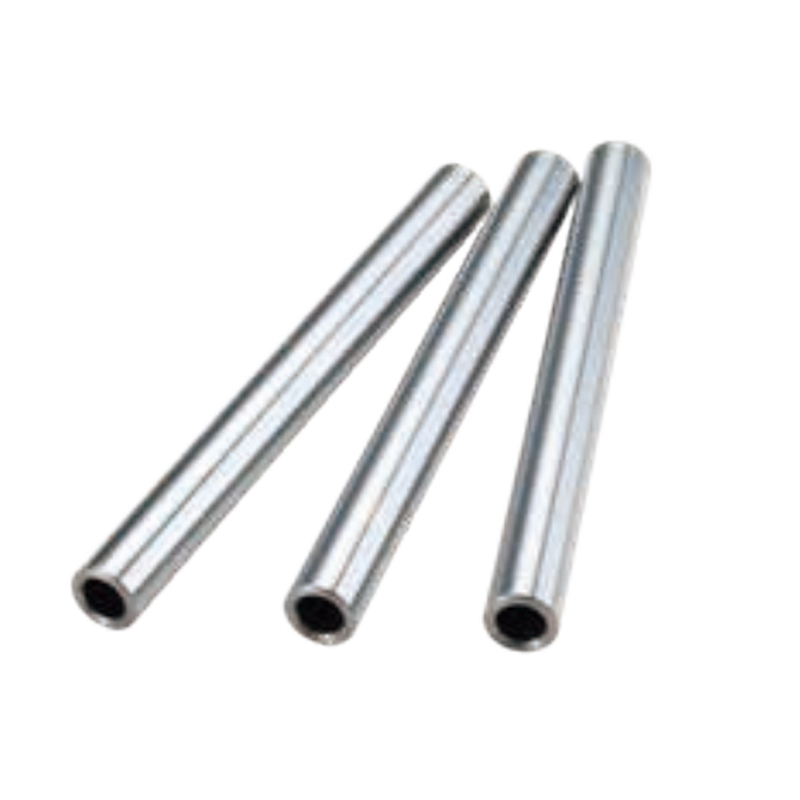

Hollow Linear Optical Axles: Also known as the SP series. Manufactured using hollow tubing, their core feature is lightweight design. While ensuring sufficient rigidity, they significantly reduce the weight of moving parts and provide space for internal cabling, air pipes, or the installation of other components. They are suitable for weight-sensitive or integrated wiring applications such as automation equipment and robotics.
By Dimensional Standards
Metric Standard Optical Axles: Such as the HS/SF series (solid) and SP series (hollow). Its key dimensions, such as diameter and tolerances, adopt the internationally recognized metric (millimeters) standard, which is currently the mainstream choice in the domestic market, facilitating compatibility with most domestic and international mainstream brand linear bearings, supports, and other accessories.
Imperial Standard Optical Shafts: Also known as SI series (solid). Their key dimensions, such as diameter, adopt the imperial (inch) standard, primarily serving applications requiring direct replacement and compatibility with specific imported European and American equipment, existing designs, or special components.
The selection of linear optical shafts first requires a trade-off between the high rigidity of solid shafts and the lightweight of hollow shafts, and then specification matching based on the design standard system (metric/imperial) of the equipment to ensure optimal performance adaptation and installation compatibility.
Your motion system is losing positioning accuracy mid-run. The actuator is running hotter than it should. Maintenance intervals are creeping shorter, and the en...
READ MOREA linear shaft, also known as a linear motion shaft, guide shaft, precision shaft, linear optical shaft, or linear guide shaft, is a cylindrical precision component used in linear motion systems. Its main function is to provide accurate guidance, stable support, and reliable positioning for moving parts.
In automation equipment, CNC machines, packaging machinery, 3D printers, robotic systems, inspection devices, and precision transmission mechanisms, a linear shaft is commonly used together with linear bearings, shaft supports, sliding blocks, support rails, and other linear motion components. This combination allows mechanical parts to move smoothly and consistently along a straight path.
A linear shaft usually does not generate motion by itself. Instead, it acts as a guiding and supporting element. The actual driving force typically comes from:
The working principle of a linear shaft is straightforward, but its role in a mechanical system is essential. It provides a precision guiding surface that allows a linear bearing, sliding block, or motion assembly to travel along a fixed straight path.
At Wangong, the performance of a linear shaft begins long before it is installed in a machine. Through controlled material selection, precision machining, heat treatment, surface finishing, and full-process inspection, each shaft is designed to support stable and predictable motion in real working conditions.
In a typical linear motion system, the linear shaft is fixed to a machine frame, shaft support, or support rail. A linear bearing or sliding block is mounted on the moving component. When the drive system starts, the moving component travels along the linear shaft.
The basic motion process is:
In a ball-type linear bearing system, steel balls circulate inside the bearing and roll along the surface of the linear shaft. This rolling contact reduces friction and helps achieve smooth, low-resistance linear movement.
Linear shafts are widely used in automation and mechanical systems because they are precise, durable, easy to install, and cost-effective. Wangong linear shafts are manufactured with attention to the details that affect real motion performance.
A linear shaft is not the most complex linear motion component, but it is one of the most practical. It provides an effective balance between performance, cost, installation flexibility, and maintenance convenience.
Linear shafts can be classified by structure, material, surface treatment, and dimensional standard. At Wangong, core linear shaft types are developed to meet different requirements for rigidity, weight, compatibility, and installation.
Linear shafts and linear guide rails are both used for linear guidance, but they differ in structure, load capacity, rigidity, accuracy, and cost.
| Comparison Item | Linear Shaft | Linear Guide Rail |
|---|---|---|
| Structure | Cylindrical shaft used with linear bearings | Profiled rail used with guide blocks |
| Load Capacity | Suitable for light-to-medium loads | Higher load capacity and stronger rigidity |
| Accuracy | Suitable for medium-precision applications | Suitable for high-precision positioning |
| Torsional Rigidity | Single shaft has limited anti-twist ability | Better resistance to moment loads |
| Installation | Simple installation and easy adjustment | Requires accurate mounting surface and alignment |
| Cost | Lower cost and good value | Higher cost |
| Maintenance | Easy to clean, lubricate, and replace | Requires careful cleaning and lubrication |
| Typical Applications | 3D printers, light automation, packaging machines | CNC machines, precision stages, robots, high-load equipment |
In general, linear shafts are suitable for simple structures, cost-sensitive designs, light-to-medium loads, and medium-precision systems. Linear guide rails are better suited for high-load, high-rigidity, high-precision, and high-speed positioning applications.
As Wangong manufactures both linear shafts and other precision transmission components, we understand that the right choice depends on the equipment’s load, speed, rigidity, accuracy, installation space, and cost requirements.
Proper selection directly affects the motion accuracy, service life, noise level, and maintenance cost of the equipment. When choosing a linear shaft, the following factors should be considered.
Correct installation helps prevent jamming, uneven wear, noise, vibration, and positioning errors.
Check for scratches, rust, bending, dents, or contamination.
Confirm that shaft diameter, length, straightness, and end machining match the drawings.
Clean the machine base, shaft supports, support rails, and linear bearings.
Fix the supports or support rails onto the machine base and perform initial positioning.
Place the shaft into the supports or support rail. Do not fully tighten the fasteners at first.
For dual-shaft systems, use measuring tools to check parallelism between the two shafts.
Slowly mount the bearing or slider onto the shaft. Avoid hammering or forced installation.
Move the slider manually through the full stroke and check for jamming, noise, or sudden resistance.
Tighten bolts, shaft supports, and end-fixing components to the specified torque.
Add suitable grease or oil according to the bearing and equipment requirements.
Check for abnormal vibration, noise, heat, or uneven wear.
Record the assembly condition, lubrication method, and maintenance cycle.
Installation should follow machine drawings, manufacturer instructions, and mechanical safety standards. For high-speed, high-precision, or heavy-load systems, more accurate alignment inspection is recommended.
